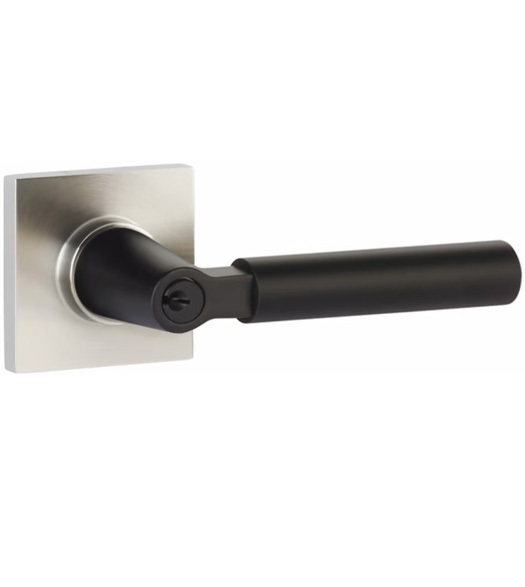

Emtek 5122KLSSM, Key in L-Square Smooth with Square Rosette
The Select Smooth Key in Lever with Square Rose is a mix and match style keyed lever where you can choose the rose ad lever finish separately for a modern look that is truly personalized. This Select Smooth Key in Lever with Square Rose will fit many standard pre-drilled doors. Choose your door thickness range and your backset. Not sure how, contact us for help. The Modern Keyed Entry Lever with Square Rosette is available in n two functions: a keyed entry where a key operates the latch from the exterior and a dummy key in lever that does not latch nor lock.
Features and Specifications for the Emtek Modern Keyed Entry Lever with Square Rosette:
- Material: Brass
- Lever Length: 5-3/8"
- Lever Projection: 1-7/8
- Rose Length: 2-1/2" square
- Rose Thickness: 3/8"
- Doors Thickness: 1-1/4" - 2-3/4"
- Backset: 2-3/8" or 2-3/4"
- Keyway: Schlage C
- Will fit standard 2-1/8" door preparations.
Available Functions
- Keyed Entry (Keyed Lock): Use when a keyed lock is needed. The lock is operated by a key from the exterior and a thumbturn on the lever from the interior. Complete set - 2 levers, 2 roses, keys, door latch, and strike plate.
- Dummy: Trim for non-working doors. It does not latch and does not lock. Usually used as matching trim for the non-working side of double doors.
Levers are Handed. Handing Guide
|
