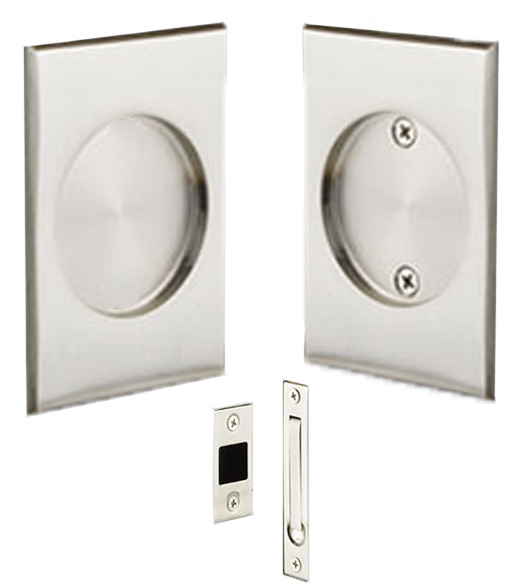

Emtek 2016, Rectangular Dummy Pocket Door Hardware
This Rectangular Dummy Pocket Door Hardware can be used on the inactive side of a pair of sliding doors. It does not latch or lock. The Dummy Rectangular Pocket Door Set comes packaged with 2 flush pulls and an edge pull (to pull a sliding door out of its pocket). The Pocket Door Edge Pull is a spring loaded pull lever so it automatically returns to a position that is flush with the plate when released. Choose from a wide variety of finish colors.
Pocket Door Dummy Function: This set neither locks nor latches. It features two flush pulls and an edge pull to help retrieve the door from the pocket.
Also Available Matching: Passage Set and Privacy Set
Specifications of the Dummy Rectangular Sliding Door Trim:
- Face Plate Height: 3-1/2"
- Face Plate Width: 2-1/2"
- Face Plate Projection: 1/8"
- Edge Pull Height: 4"
- Edge Pull Width: 3/4"
- Edge Pull Projection: 3/32"
- Door Thickness: 1-3/8" - 1-3/4"
- Backset: 2-3/8"
- Non-handed
- Emtek 2016 Dimensions Diagram (PDF)
*Sold as a Set: two (2) flush pulls, an edge pull, and all mounting hardware. For One (1) Door.
|
