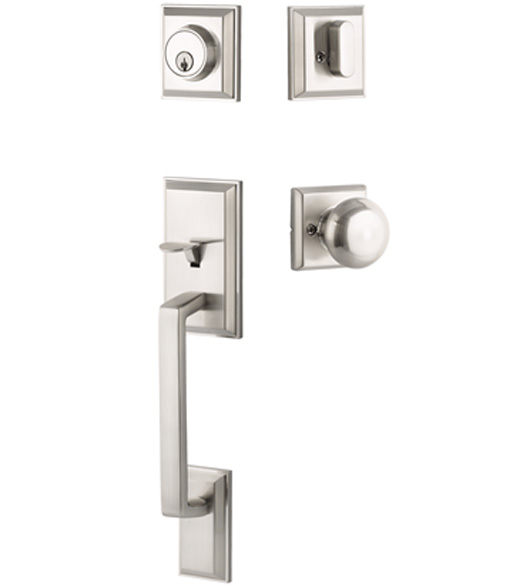

The Ellington Handleset with Walker Knob is a transitional entry set poised on the edge of modern silhouette and traditional elegance. This single cylinder door lock comes packaged as a complete set with the beautiful Walker Half-Round Knob. The Transitional Ellington Entry Door Handleset with Walker Knob will fit doors that are 1-3/8 inches to 1-3/4 inches thick with 2-3/8 inch or 2-3/4 inch backsets.

Single Cylinder: From the exterior, a thumb piece operates the handleset latch and a key operates the deadbolt. From the inside, a thumbturn unlocks the deadbolt and a knob operates the latch.

Specifications for the Yale Expressions Ellington Entrance Handleset:

• Material: Brass
• Keyway: Schlage C
• Center to Center Door Prep: 5-1/2"
• Exterior Deadbolt Plate Height: 2-3/4" square
• Exterior Top Plate Width: 2-5/8"
• Exterior Bottom Plate Width: 1-3/4"
• Exterior Projection: 2-1/8"
• Exterior Grip Clearance: 1-5/8”
• Interior Deadbolt Plate Height: 2-5/8" square
• Interior Trim Plate Height: 2-5/8" square
• Interior Knob Diameter: 2-1/8"
• Interior Knob Projection: 2-1/4"
• Door Thickness: adjustable for 1-3/8" - 1-3/4"
• Backset: adjustable 2-3/8" or 2-3/4"
• Door Specs: 2-1/8” face bore, 1” edge bore, 1” x 2-1/4” radius corner
• Handing: non-handed
• Keyway: Schlage C
• Yale YELT44-WLK Specifications (PDF)

Sold Individually

Select Finish    US10B: Oil Rubbed Bronze   US19: Matte Black   US26: Polished Chrome   US15: Satin Nickel   Keying - Important Ordering Guide I Only Ordered One Lock Keyed Different Keyed Alike Add  $5.50
Quantity
