| Item No: |
EMT-87160 |
| List Price: |
$9.45 |
| Your Price: |
$7.99 |

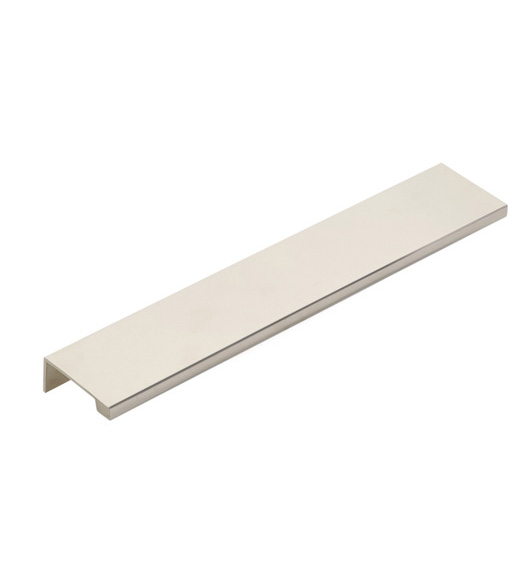

Emtek 87160, Edge Pull for Cabinets
The Modern Edge Pull can be mounted horizontally or vertically for use on kitchen cabinet doors or drawers. The Cabinet Edge Pull is available in modern finishes colors for your kitchen remodel. Choose from an array of sizes. The Hidden Cabinet Pull comes packaged with mounting hardware.
Specifications of the Emtek Hidden Cabinet Pull:
Available in 7 Sizes:
EMT-87160:
- Length Center to Center: 1"
- Overall Length: 1-1/2"
- Projection: 1-3/4"
- Height: 3/4"
- Inner Projection: 1-1/4"
EMT-87100:
- Length Center to Center: 3"
- Overall Length: 4-1/4"
- Projection: 1-3/4"
- Height: 3/4"
- Inner Projection: 1-1/4"
EMT-87110:
- Length Center to Center: 4"
- Overall Length: 5-1/4"
- Projection: 1-3/4"
- Height: 3/4"
- Inner Projection: 1-1/4"
EMT-87120:
- Length Center to Center: 6"
- Overall Length: 7-1/4"
- Projection: 1-3/4"
- Height: 3/4"
- Inner Projection: 1-1/4"
|
EMT-87130:
- Length Center to Center: 8"
- Overall Length: 9-1/4"
- Projection: 1-3/4"
- Height: 3/4"
- Inner Projection: 1-1/4"
EMT-87140:
- Length Center to Center: 10"
- Overall Length: 11-1/4"
- Projection: 1-3/4"
- Height: 3/4"
- Inner Projection: 1-1/4"
EMT-87150:
- Length Center to Center: 12"
- Overall Length: 13-1/4"
- Projection: 1-3/4"
- Height: 3/4"
- Inner Projection: 1-1/4"
|
|
