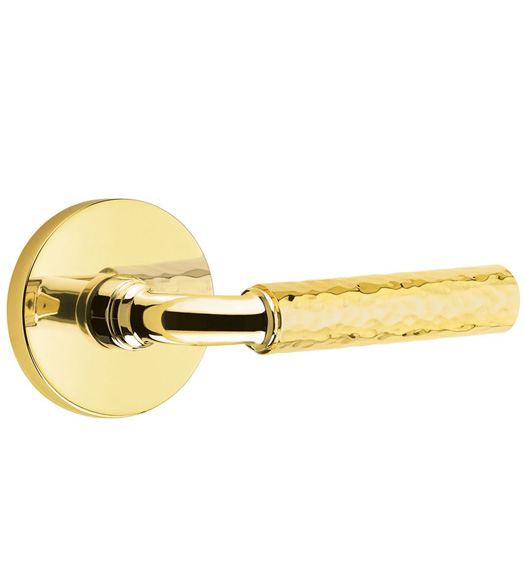

The Hammered Lever with Disk Rose will fit most pre-drilled doors. Choose from several finish colors including black, brass, and nickel. The R-Bar Hammered Lever with Disk Rosette brings together the classic beauty of traditional decor and launches it into the present day with modern silhouettes. Choose from passage, privacy, and dummy functions.

Features of the R-Bar Hammered Door Lever with Disk Rose:

• Fits standard door cut outs (2-1/8" pre-drilled doors).
• Lever is surface mounted (rosette screws to the door's face).
• Solid brass lever and trim rose.
• Sold as complete set.
• Easy to install.

Specifications of the Hammered R-BAR Leverset with Round Rose:

• Material: Brass
• Lever Length: 5-1/8"
• Lever Projection: 2-1/8"
• Clearance: 1-1/4"
• Rose Diameter: 2-1/2"
• Door Thickness: 1-1/4 - 3"
• Backset: 2-3/8" or 2-3/4"
• Emtek Select R-Bar Lever Dimensions Diagram (PDF)

Available Functions:

• Double Dummy: No door latch. Door levers on both sides of the door. Package Includes: 2 levers, 2 roses, and mounting screws.
• Passage (Hall or Closet): For doors that don't need locking. Latch operates from either side of door. Package Includes: 2 levers, 2 roses, door latch, strike plate, dust box, faceplate, spindle, and mounting screws.
• Privacy (Bedroom or Bathroom): For doors that could need privacy locking. Latch operates from either side. Push button on interior rose engages privacy; emergency release hole is on exterior rose. Turning inside lever will release privacy push button and retract the door latch. Package Includes: 2 levers, 2 roses, privacy button, door latch, strike plate, dust box, faceplate, spindle, and mounting screws.

Levers are Handed. Handing Guide

Select Function - Important Ordering Guide 5059RAHA: Double Dummy 5109RAHA: Passage (Hall or Closet) 5209RAHA: Privacy (Bedroom or Bathroom)   Select Finish  US10B: Oil Rubbed Bronze US15: Satin Nickel US19: Matte Black US26: Polished Chrome US14: Polished Nickel US4: Satin Brass US3NL: Unlacquered Brass Add  $16.00   Select Door Thickness  1-1/4" - 2" Door Thickness 2" - 2-1/2" Door Thickness 2-1/2" - 3" Door Thickness   Select Backset - Important Ordering Guide 2-3/8" Backset 2-3/4" Backset   Select Handing - Important Ordering Guide RH: Right Handing LH: Left Handing
Quantity
