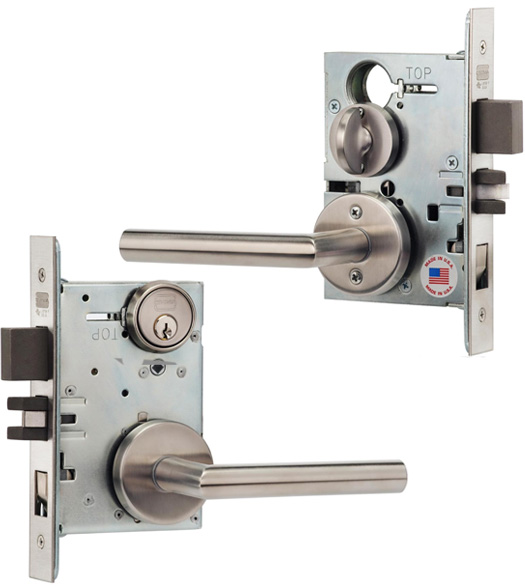

The Modern Mortise Lever Lockset is a minimalist mortise door entryset. It comes packaged with the Omnia #12 lever with modern rosette, deadbolt, mortise lock, and all the necessary strikes and mounting hardware. This Satin Stainless Steel Modern Mortise Lever Lockset is suitable for 1-3/4 inch thick doors with 2-1/2 inch backsets of 2-3/4 inch backsets.

Features of the 2000 Series Modern Lever Mortise Lockset:

• Keyway: Schlage "C"
• Tough, non rusting materials used throughout.
• Mortise case is heavy wrought steel with zinc dichromate finish for corrosion resistance.
• Deadbolt: Full 1" Throw, Solid Brass with Saw-proof Insert.
• UL Listed 3 Hour
• ANSI A156.13.2005, Grade 1 Lock

Specifications for Omnia 2012 Mortise Lock with Modern Rose Lever:

• Material: Stainless Steel
• Finish: Satin Stainless Steel
• Lever Rose Diameter: 2-9/16"
• Lever Rose Projection: 3/8
• Doors Thickness: Optional, 1-3/4" - 2-1/4" Thick Doors (Contact Us if doors are thicker)
• Backset: 2-1/2" or 2-3/4"
• 2-1⁄2” backset with 3-7⁄8” minimum stile
• 2-3⁄4” backset with 4-1⁄2” minimum stile
• Strike: Solid brass curved lip strike. 4-7⁄8” x 1-1⁄4” x lip 1-1⁄4” to center.
• Omnia Mortise Lockset Dimensions and Specifications (PDF)

When Selecting a Function:

• Single Cylinder Entry: Latchbolt operates by lever from either side except when outside trim is locked by stop-button; then opens by key outside, by lever inside. Deadbolt activated by key outside and by turnpiece inside.
• Panic Proof Entry: Latchbolt operates by lever from either side except when outside trim is locked by stop-button. Deadbolt activated by key outside and by turnpiece inside. Turning inside lever will retract both deadbolt and latchbolt at the same time.
• Storeroom: Latchbolt operates by lever inside and by key outside. The outside lever is rigid. Auxiliary latchbolt deadlocks latchbolt.

Sold Individually

Select Function - Important Ordering Guide   A: Single Cylinder Entry   F: Panic Proof Entry   EW: Storeroom   Select Backset - Important Ordering Guide 2-1/2" Backset 2-3/4" Backset   Select Door Handing & Door Swing - Important Ordering Guide LHR: Left Hand Door, Out-swing LH: Left Hand Door, In-swing RHR: Right Hand Door, Out-swing RH: Right Hand Door, In-swing   Keying - Important Ordering Guide I Only Ordered One Keyed Different Keyed Alike Add  $5.50
Quantity
