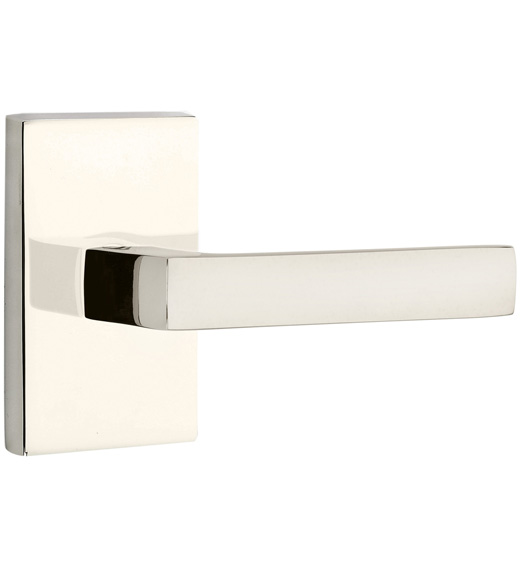

The Dumont Lever has a modern feel that is only made sleeker by the use of a concealed fastener mechanism that makes it so the rosette has no exposed screws. This is perfect for a clean look once installed. The Concealed fastener is only available on privacy and passage functions. Dummy functions are surface mounted. The Dumont Lever with Rectangular Rose is available in dummy, passage, or privacy functions for your interior or exterior doors. Choose from a wide array of modern finish colors. The Dumont Lever with Rectangular Rose CF will fit most standard pre doors cut-outs.

Features of the Contemporary Dumont Door Lever with Modern Rectangle Rose:

• Fits standard door cut outs (2-1/8" pre-drilled doors).
• Concealed screw rose on privacy and passage functions. Dummy functions are surface mounted (rosette screws to the door's face).
• Solid brass lever and trim rose.
• Sold as complete set.
• Easy to install.

Specifications of the Modern Dumont Leverset with Rectangular Rose:

• Material: Brass
• Lever Projection: 1-7/8"
• Clearance: 1-1/2"
• Rose Height: 4"
• Rose Width: 2-1/2"
• Door Thickness: 1-3/8" - 2-1/4"
• Backset: 2-3/8" or 2-3/4"
• Emtek Dumont Lever Dimensions Diagram (PDF)

Available Functions:

• Double Dummy: No door latch. Door levers on both sides of the door. Package Includes: 2 levers, 2 roses, and mounting screws.
• Passage (Hall or Closet): For doors that don't need locking. Latch operates from either side of door. Package Includes: 2 levers, 2 roses, door latch, strike plate, dust box, faceplate, spindle, and mounting screws.
• Privacy (Bedroom or Bathroom): For doors that could need privacy locking. Latch operates from either side. Push button on interior rose engages privacy; emergency release hole is on exterior rose. Turning inside lever will release privacy push button and retract the door latch. Package Includes: 2 levers, 2 roses, privacy button, door latch, strike plate, dust box, faceplate, spindle, and mounting screws.

Levers are Handed. Handing Guide

Select Function - Important Ordering Guide 5052DT: Double Dummy C5112DT: Passage (Hall or Closet) Add  $38.40 C5212DT: Privacy (Bedroom or Bathroom) Add  $38.40   Select Finish  US10B: Oil Rubbed Bronze US15: Satin Nickel US19: Matte Black US26: Polished Chrome US14: Polished Nickel US4: Satin Brass US3NL: Unlacquered Brass Add  $16.00   Select Backset - Important Ordering Guide 2-3/8" Backset 2-3/4" Backset   Select Handing - Important Ordering Guide RH: Right Handing LH: Left Handing
