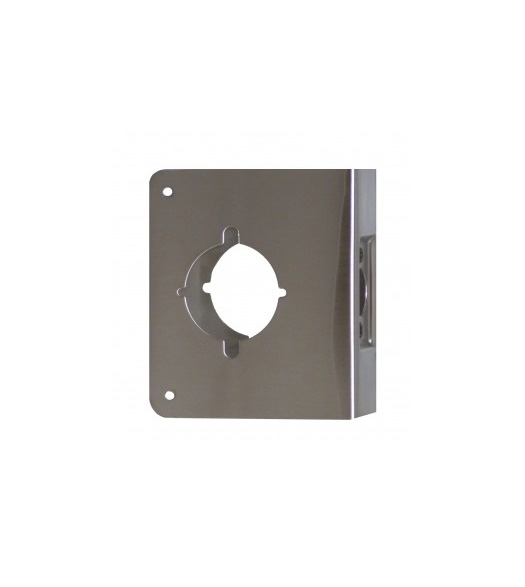

Don-Jo 75-CW, 4-3/4" x 5-1/2" Wrap Around Plate for Marks and Medco Levers
This wrap around plate protects your doors from entry tools and tampering. 2.125 Inch Bore Hole has special cut-outs specifically designed for Marks and Medco Style Levers. It is 4.750 inches wide and 5.50 inches high with a 2.750 inch backset.
For use with PDQ Commercial Lever Locks, Imperial USA Commercial Lever Locks, and Deltana Commercial Lever Locks.
|
Don-Jo 75-CW Features:
- Steel 22 gauge (.032) construction
- Assorted finishes available
- Built-in stainless steel threaded insert for tube latch
- Long lasting and secure mounting of latch and bolt
- Heavy duty stainless steel trim screws
- Permanent holding power eliminates loosening of latch mounting screws
Specifications of the Don-Jo 75-CW Wrap Around Plate:
- Plate Height: 5-1/2"
- Door Face Plate Width: 4-3/4"
- Door Edge Plate Width: 1-3/4"
- Door Thickness: 1-3/4"
- Bore Hole Backset: 2-3/4"
- Bore Hole Diameter: 2-1/8"

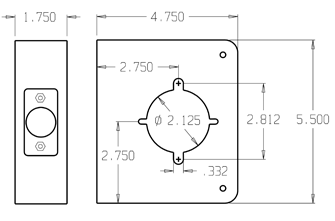

- Don-Jo 75-CW Dimensions Diagram (PDF)
|
|
Sold Individually
|
