| Item No: |
DJO-942-CW |
| List Price: |
$39.90 |
| Your Price: |
$31.92 |

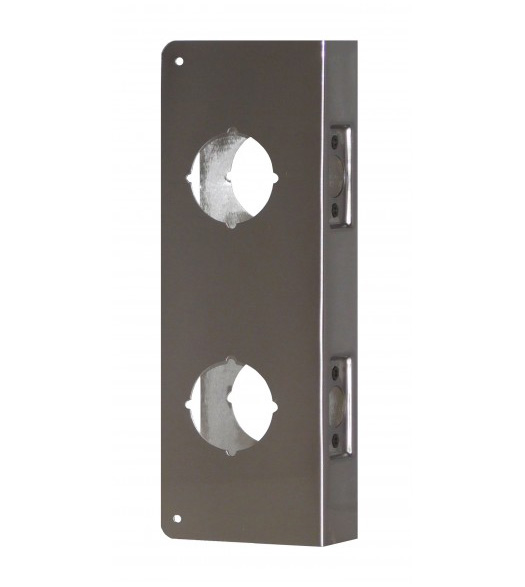

Don-Jo 942-CW, 4 Inch Center to Center Double Lock Wrap Around Plate
This wrap around plate allows for two door bore holes with locks / knobs / levers combination to be secure. The two 2-1/8" diameter lock bore holes are 4" center to center from each other. It fits a 1-3/4" thick door with 2-3/8" backset. Plate Measures 4" x 9".
|
Don-Jo 942-CW Features:
- Steel 22 gauge (.032) construction
- Assorted finishes available
- Built-in stainless steel threaded insert for tube latch
- Long lasting and secure mounting of latch and bolt
- Heavy duty stainless steel trim screws
- Permanent holding power eliminates loosening of latch mounting screws
Specifications of the Don-Jo 942-CW Wrap Around Plate:
- Plate Height: 9"
- Door Face Plate Width: 4"
- Door Edge Plate Width: 1-3/4"
- Door Thickness: 1-3/4"
- Bore Hole Backset: 2-3/8"
- Bore Hole Diameter: 2-1/8"
- Bore Hole Distance: 4" Center to Center
- Don-Jo 942-CW Dimensions Diagram (PDF)
|
|
Sold Individually
|
