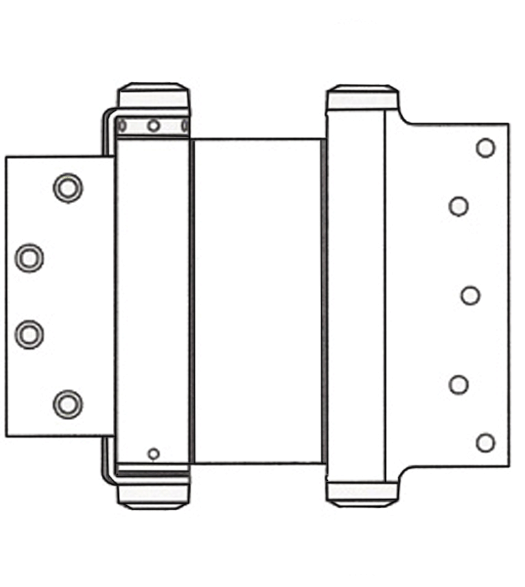

6" x 4-1/2" Double Acting Spring Hinge. Mortise Type for use on Hollow Metal Doors (4-1/2" Template Hole Pattern) - Door flange is mortised into edge of door. Jamb flange is surface applied to door jamb. For doors 1-3/4" thick. Packaged with 12-24 x 1/2" machine screws.

Also available : Bommer CL3029-6x4.5 6" x 4-1/2" Double Acting Spring Hinge with Ball Tips

Note: If standard hinge locations are furnished on 1-3/4" hollow metal doors, Bommer recommends using Bommer 3029-8x4.5 for maximum support.
I.E.: If you are installing a 1-3/4" thick metal door that has normal hinge locations on it, use the larger 8" x 4-1/2" Template Pattern Spring Hinges.

Specifications of Bommer 3029-6x4.5 Double Acting Spring Hinge

• Hinge Size: 6"
• Material: Steel
• Template Door Leaf (4-1/2" Template Pattern)
• Non-Handed
• Hinge Type: Mortise
• Door Thickness: 1-3/4" Thick Doors
• Bommer 3029-6x4.5 Dimension Diagram (PDF)

Bommer 3029-6x4.5 Hinge Selection for Maximum Door Size
Bommer Hinge Number	2 Hinges		3 Hinges		Door Thickness	Min. Door Height
	Door Weight	Door Width	Door Weight	Door Width
3029-6x4.5	75 lbs	2'-8"	107 lbs	3'-0"	1-3/4"	7'-0"
Note: Do Not use on Doors with Hinge Edge Beveled.

*Sold as a Pair (2 Hinges).
