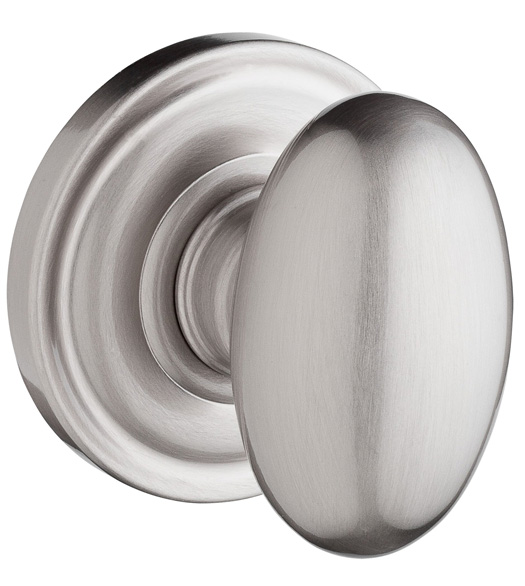

Baldwin ELL-TRR, Ellipse Egg Knob with Traditional Round Rose
The refined beauty of the Ellipse Knob with Traditional Round Rose is a perfect compliment to any traditional setting. It is designed for easy installation for standard pre-drilled doors 1-3/8 inches to 2-1/2 inches thick. It is fully reversible to accommodate all door conditions. Forged out of solid brass, it is built to last and is backed by a limited lifetime mechanical warranty and limited 25 year finish warranty to assure that it meets the Baldwin standards of excellence. An adjustable latch will accommodate 2-3/8 inch or 2-3/4 inch backsets.
Features of the Baldwin Reserve Ellipse Knob with Traditional Round Rose:
- 2-1/8" cross bore and 1" edge bore for latch
- Latch Bolt: 1/2"
- Strike: square corner
- Keyed entry features the Baldwin 5-pin tumbler C keyway.
- Tested to exceed ANSI/BHMA Grade 2 Security.
- Warranty: 25 year finish warranty and a limited lifetime mechanical warranty.
Specifications of the Egg-Shaped Ellipse Knobset:
- Knob Length: 2-7/16"
- Projection: 2-11/32"
- Keyed Entry Projection: 2-3/16"
- Rose Diameter: 2-9/16"
- Door Thickness: 1-3/8" - 2" standard with optional thick door kit for 2" - 2-1/2".
- Backset: Adjustable for 2-3/4" or 2-3/8"
- Latchbolt: 1/2"
When Selecting a Function:
- Half Dummy: A surfaced mounted, non-working knob. Non-locking and non-latching trim for one side of door. This inactive pull is usually used to match trim.
- Full Dummy: Surfaced mounted, non-working knobs. Non-locking and non-latching trim for both sides of door. These inactive pulls are usually used to match trim.
- Passage (hall or closet): Latches but does not lock. The latch is activated by turning the either of the two knobs.
- Privacy (bedroom or bathroom): Latches and can be locked. Can be locked from the inside with a push-button.
- Keyed Entry: Use when a keyed lock is needed. An ANSI/BHMA A156.2 Grade 2 security lock that is operated by a key from the exterior and a turnbutton on the knob from the interior. Complete set - 2 knobs, 2 roses, 2 keys, door latch and strike plate.
