Contemporary Commercial 9" Offset Door Pull
This contemporary design offset door pull has 9" Center to Center mounting points with a total length of 10-1/8". Most often used on metal framed glass commercial doors such as restaurant entry doors, storefront doors, office entry doors, etc.
Also available: Longer 10" Offset Door Pull

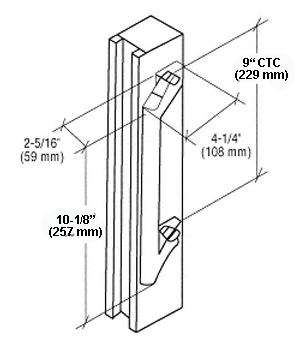

Specifications for Global TH1100-STED-PULL-9 Offset Door Pull
- Mounting Centers: 9" C/C (distance between the 2 mounting bolts)
- Total Length: 10-1/8"
- Total Width: 4-1/4"
- Projection: 2-5/16"
- Offset: 3"
- Pull Diameter: 3/4"
- Pull Material: Non-Rusting Aluminum
These offset door pulls are packaged standard for Surface Mounting (1/4-20 machine threaded stud) and include installation hardware. The two studs are tapped (1/4-20 thread) into the aluminum door frame. Then the pull handle is slipped over the studs and secured with Allen set screws to provide a clean concealed fastener look.
Available in Aluminum or Dark Bronze finish to match the common glass door frame colors..
