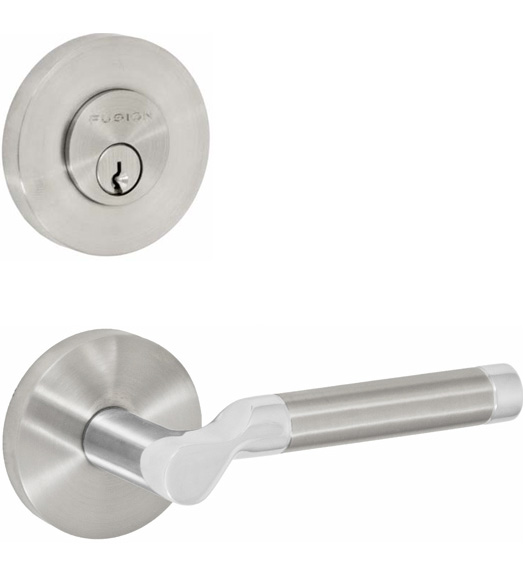

Contemporary Stainless Steel Entryset, Fusion SG-A2/100-A2


Item No:  FUS-SG-A2/100-A2

Stainless Steel Fusion SG/A2 Lever And 100/A2 Deadbolt

This passage lever and single cylinder deadbolt set features the clean lines and sleek appearance that is characteristic of the contemporary aesthetic--an appearance that is maintained by the concealed screw assembly. A Fusion made entry set, it is both chic and streamlined. Made for heavy duty security, this stainless steel deadbolt and lever entryset has a limited lifetime warranty. It is available in Brushed Stainless Steel and Polished Stainless Steel finishes. It has an optional 2-3/8" or 2-3/4" backset.

Also Available Matching SG-A2 Stainless Steel Leverset

Features of the Contemporary Stainless Steel SG-A2 Lever and 100-A2 Deadbolt Set:

  • 1" throw bolt with Interior roll pins.
  • Heavy-Duty strike with 3 screws for added security.
  • Solid brass Schlage SC1 keyway & 5 pin system.
  • Cycle tested to ANSI standards.
  • ”Positive Stop” lever spring mechanism
  • Reversible Latchbolt in matching/coordinating finish
  • Easy assembly of leverset with alignment block and rose posts
  • Includes passage function door leverset and single cylinder deadbolt.

Specifications of the Fusion Stainless Steel SG-A2 Lever With 100-A2 Deadbolt Entryset:

  • Deadbolt Diameter: 2-7/8"
  • Deadbolt Projection: 1"
  • Lever Length: 4-7/8"
  • Lever Projection: 2"
  • Rose Diameter: 2-7/8"
  • Rose Projection: 3/8"
  • Adjustable Door Thickness 1-1/4" to 2"
  • Backsets: Either 2-3/8" or 2-3/4"
  • Standard Latch Rotation is 40 Degrees.
  • Material: Stainless Steel
  • Lifetime Limited Warranty on workmanship, materials, and operation.

The Single Cylinder Deadbolt is thrown and retracted by a key from the exterior and a thumbturn from the interior while the Passage Lever Set latch operates from either side of door by using a spindle.

** This item is being discontinued. Very limited quantities available.


Select Finish

Select Backset - Important Ordering Guide

Select Handing - Important Ordering Guide

Keying - Important Ordering Guide


Quantity


Fusion is going out of business. All Fusion products will be Discontinued on 9/7/17. Very limited availability on Fusion Items, call 954-776-5340
or Click Here to Contact Us.


  Contemporary Stainless Steel Entryset, Fusion SG-A2/100-A2
