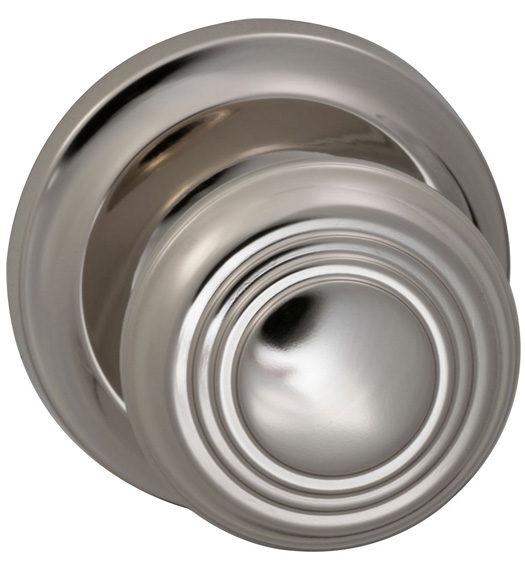

Omnia 970, Classic Solid Brass Knobset
Part of Omnia's Traditions Collection, the 970 Knobset features a simple elegance that makes it alluring. Made out of solid brass, this door knob will look great in any home and since it is available in 7 beautiful finishes, you'll be sure to find the right one to fit your tastes. Designed to be easy to install, it will cover 2-1/8" pre-drill bore holes and is available in dummy, passage, or privacy functions.
All critical interior parts are made of brass. Tough, non-rusting materials are used throughout. All dimensions are standard to fit existing bores for easy replacement installations.
Features of the Simple Solid Brass Door Knob:
- 28 degrees rotation to retract latch.
- Concealed screw rose covers 2-1/8" bore hole.
- Solid Brass Construction
Specifications for the Omnia 970 Classic Knobset:
- Knob Diameter: 2"
- Knob Projection: 2-1/2"
- Rose Diameter: 2-5/8"
- Backset: either 2-3/8" or 2-3/4"
- Door Thickness: 1-3/8", 1-3/4", or 2"
Available Functions for the Omnia 970/00 Traditional Knobset With Matching Rose:
- Single Dummy: A stationary knob for use as a pull or to match trim on one side of door. Includes 1 knob, 1 rose, and mounting screws.
- Double Dummy: A stationary knob for use as a pull or to match trim on both sides of door. Includes 2 knobs, 2 roses, and mounting screws.
- Passage (hall or closet): For doors that don't need locking. Latch operates from either side of door by using a 7mm solid spindle. Complete set - 2 knobs, 2 roses, door latch, strike plate, dust box, faceplate, spindle, and mounting screws.
- Privacy (bedroom or bathroom): For doors that could need locking. Latch operates from either side. Push button on interior rose engages
privacy; emergency release hole is on exterior rose. Turning inside knob will release privacy and retract latchbolt. Uses 7mm split spindle. Complete set - 2 knobs, 2 roses, privacy button, door latch, strike plate, dust box, faceplate, spindle, and mounting screws.
