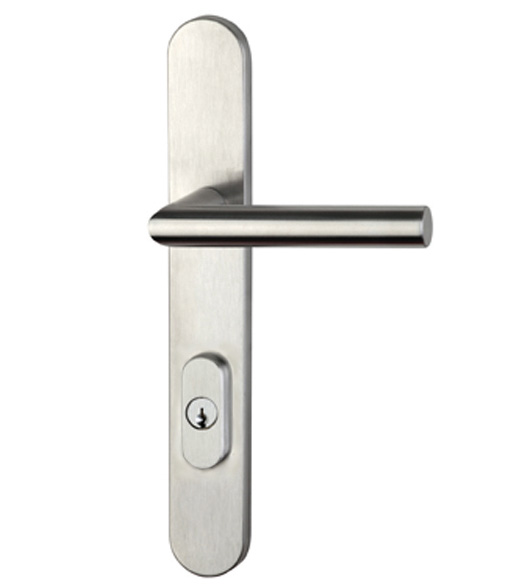

With its modern design, this Omnia patio leverset is the perfect addition to any contemporary home. The brushed stainless steel finish brings out the sleek look of the multipoint trim. These contemporary stainless steel leversets from Omnia are for use with American Cylinder Below (american profile lock cylinder below the door lever) type multipoint mortise locksets commonly found on swinging patio doors.

This contemporay Stainless Steel Trim is extremely resistant to corrosion, scratches, abrasion--plus it is stylish.

The Thru-Bolts are fixed at 9-1/2" center to center and can not be modified. In some cases new thru-bolting holes must be drilled in your door.

These multipoint trim sets are intended to replace the original trim from G-U, Marvin Integrity, KML by Anderson, Atrium, Superior, and others. The Lock to Lever distance is 3-5/8" (92 mm).

Also Available: Rounded Patio Door Trim with European Cylinder and with American Cylinder Above the lever

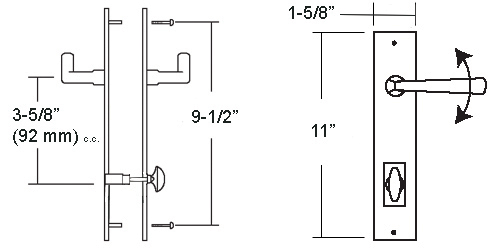

Specifications: for Omnia 73000ACB Multipoint Trim Sets

• Lock to Lever Spacing: 3-5/8" (92 mm) Center to Center
• Thru-Bolt Hole Spacing: 9-1/2" (242 mm) Center to Center
• Plate Height: 11" (280 mm)
• Plate Width: 1-5/8" (40 mm)
• Plate Projection: 7/16" (10 mm)
• Solid Stainless Steel Trim
• Satin Stainless Steel Finish

Available Functions: for Omnia 73000ACB Multipoint Trim Sets

• Dummy Pair, Inactive: Fixed inactive levers both sides of door. For use as a pull or to match trim. Normally used on inactive French door.
  Set includes: Two (2) backplates, Two (2) levers with spindles and mounting screws.
• Dummy Pair, Active (inside): Active lever inside with fixed inactive lever outside. For use as a pull or to match trim. Normally used on inactive French door.
  Set includes: Two (2) backplates, Two (2) levers with spindles and mounting screws.
• Patio: Active levers both sides of door. Thumb turn inside to lock door.
  Set includes: Two (2) backplates, Two (2) levers with spindles, One (1) interior thumb turn and mounting screws.
• Keyed Entry: Active levers both sides of door. Keyed lock cylinder outside with thumb turn inside to lock door.
  Set includes: Two (2) backplates, Two (2) levers with spindles, Two (2) cylinder collars, One (1) american profile cylinder with key outside & thumb turn inside and mounting screws.

Choose any of the different stainless steel interior levers to complete your handleset.

Select Function - Important Ordering Guide OMN-730xxACB-PD - Dummy Pair, Inactive OMN-730xxACB-PDA - Dummy Pair, Active OMN-730xxACB-PAT - Patio Add  $22.50 OMN-730xxACB-A - Keyed Entry Add  $94.50   Select Door Thickness  1-3/4" Thick Door 2" Thick Door 2-1/4" Thick Door   Select Trim    73011ACB   73012ACB Add  $2.25   73033ACB Add  $41.25   73023ACB Add  $43.50   73025ACB Add  $54.00   73043ACB Add  $57.75   Select Handing - Important Ordering Guide Right Handed Left Handed   Keying - Important Ordering Guide Keyed Different Keyed Alike Add  $5.50 I Only Ordered One Non-Keyed (Dummy Pair)
